3D Revascularization Device
Manufacturer: Penumbra, Inc.
Category: Revascularization of patients with acute ischemic stroke

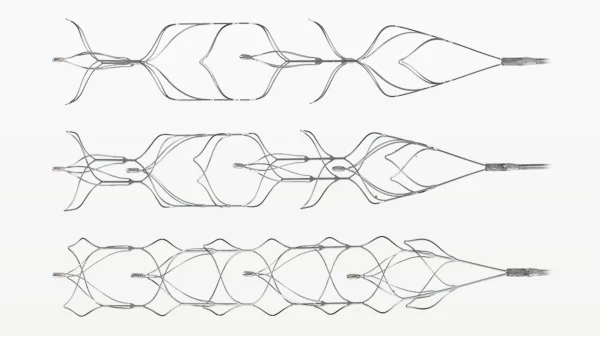

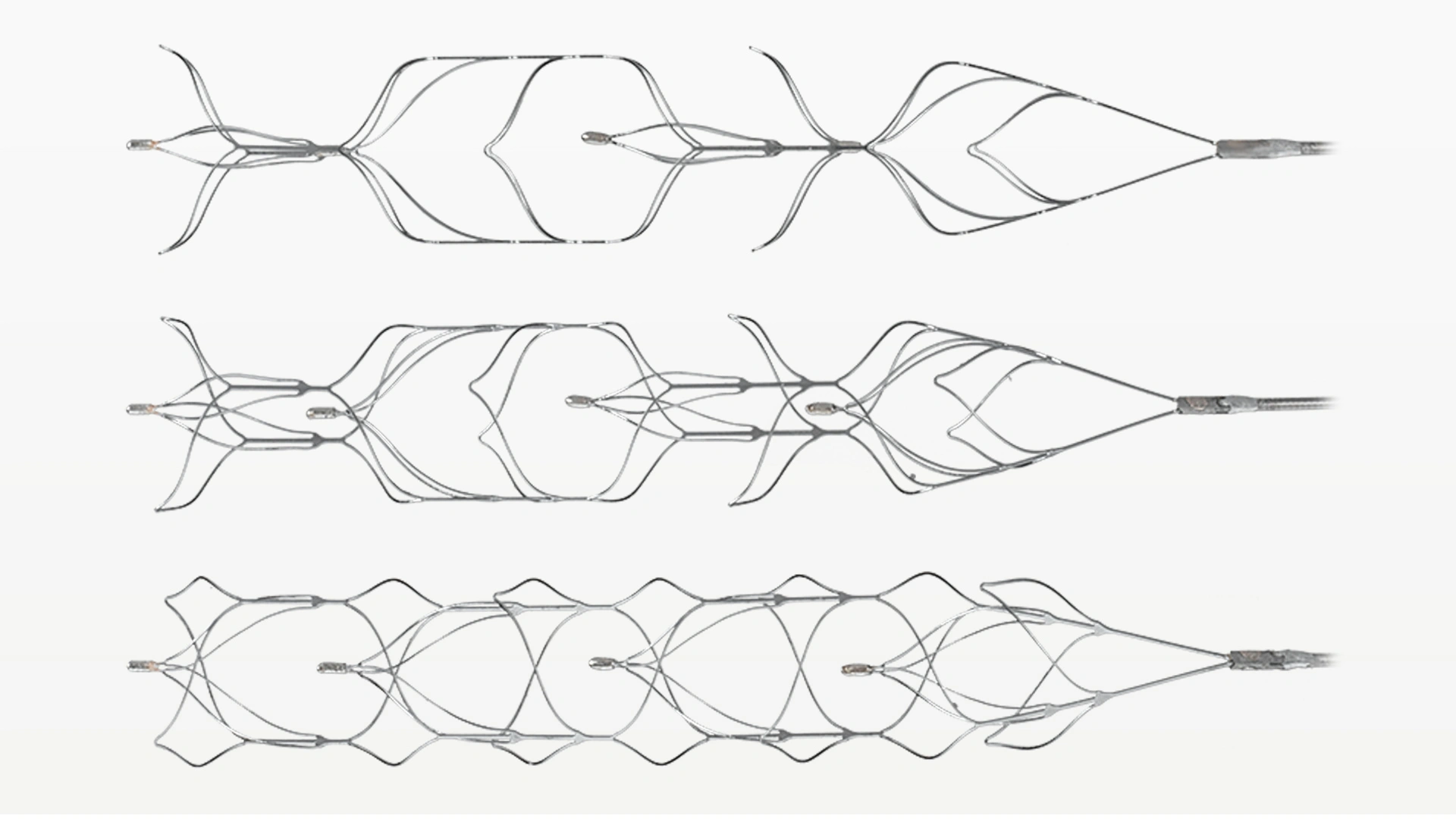

- Unique architecture minimizes vessel wall contact
- Four intraluminal chambers designed to lock, and petals to trap clot in combination with RED®, Penumbra JET® 7 with Standard Tip, and ACE® Reperfusion Catheters
- Four distal markers along the length of 3D designed to provide accurate device placement
Description
The 3D Revascularization Device™ is a departure from the previous generation of retrievers. 3D offers technologically-advanced intraluminal chambers designed to lock, and petals to trap clot in combination with Penumbra Reperfusion Catheters.

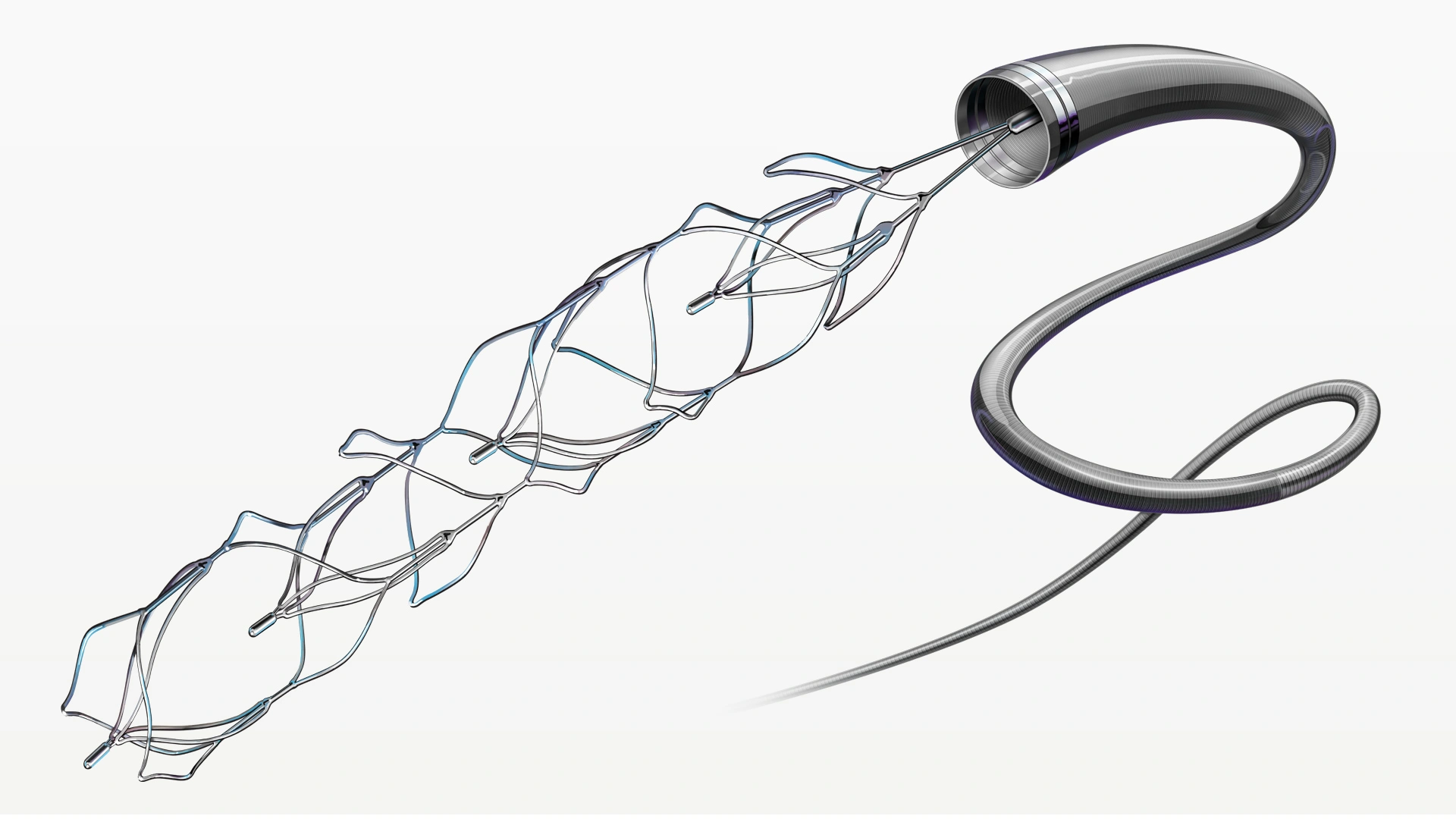

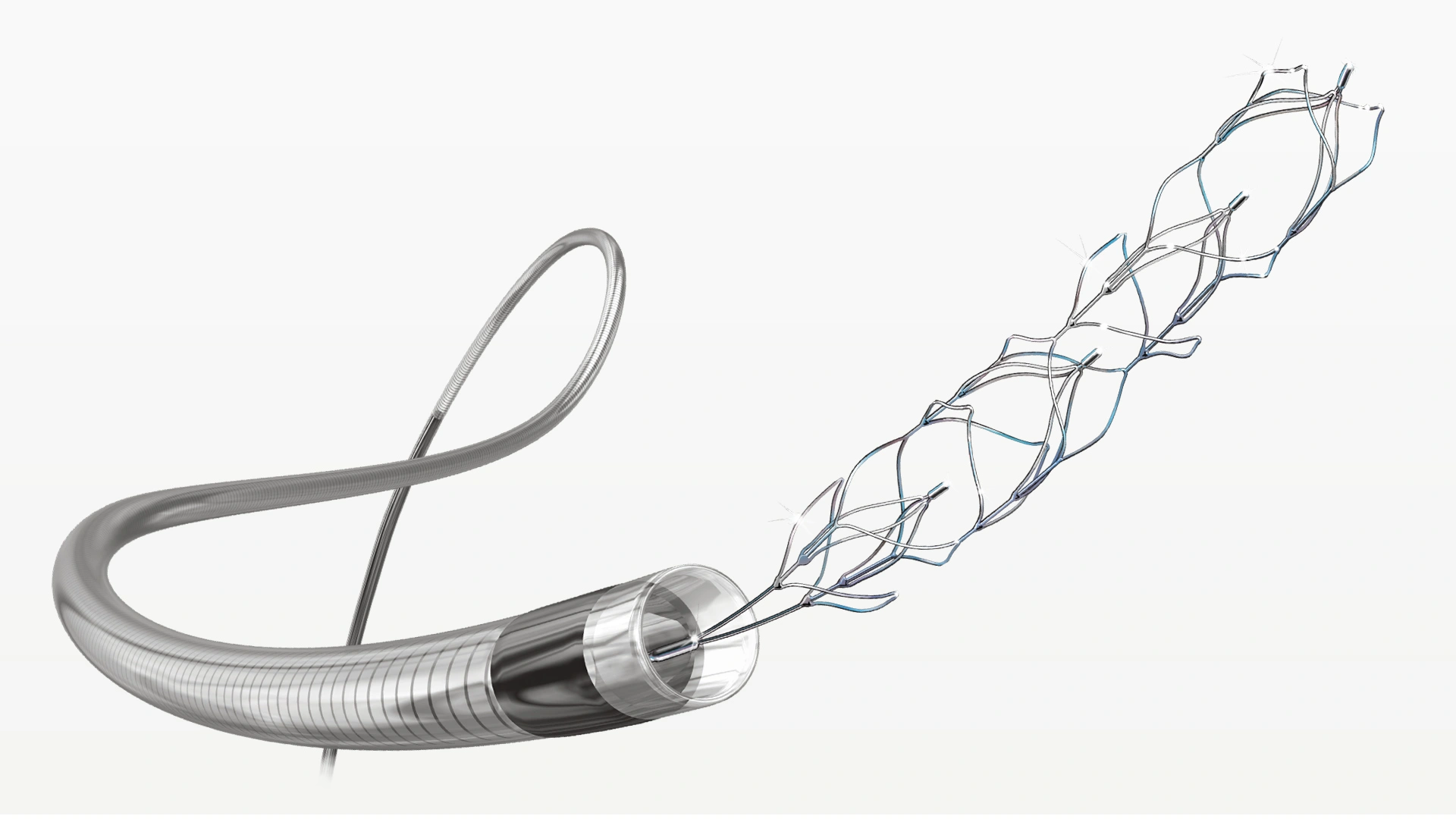

Designed for Use with Aspiration
- Four intraluminal chambers lock clot to maximize clot extraction with Penumbra JET/ACE Reperfusion Catheter
- 3D petals trap clot to facilitate clot removal
- Unique architecture minimizes vessel wall contract’s to create atraumatic procedure
- Optimized radial force provides effective clot integration
- Provides up to five retrieval passes into Penumbra JET/ACE Reperfusion Catheter
Specifications
Ordering Information
| Catalog Number | Description | Proximal OD (F) (in.) (mm) | Distal OD (mm) | Proximal ID (in.) (mm) | Distal ID (in.) (mm) | Working Length (cm) |
| RED72 | RED 72 Reperfusion Catheter | 6 (.085) (2.16) | 2.16 | .072 (1.83) | .072 (1.83) | 132 |
| RED68 | RED 68 Reperfusion Catheter | 6 (.084) (2.13) | 2.13 | .068 (1.73) | .068 (1.73) | 132 |
| RED62S | RED 62 Reperfusion Catheter | 6 (.076) (1.93) | 1.93 | .062 (1.57) | .062 (1.57) | 138 |
